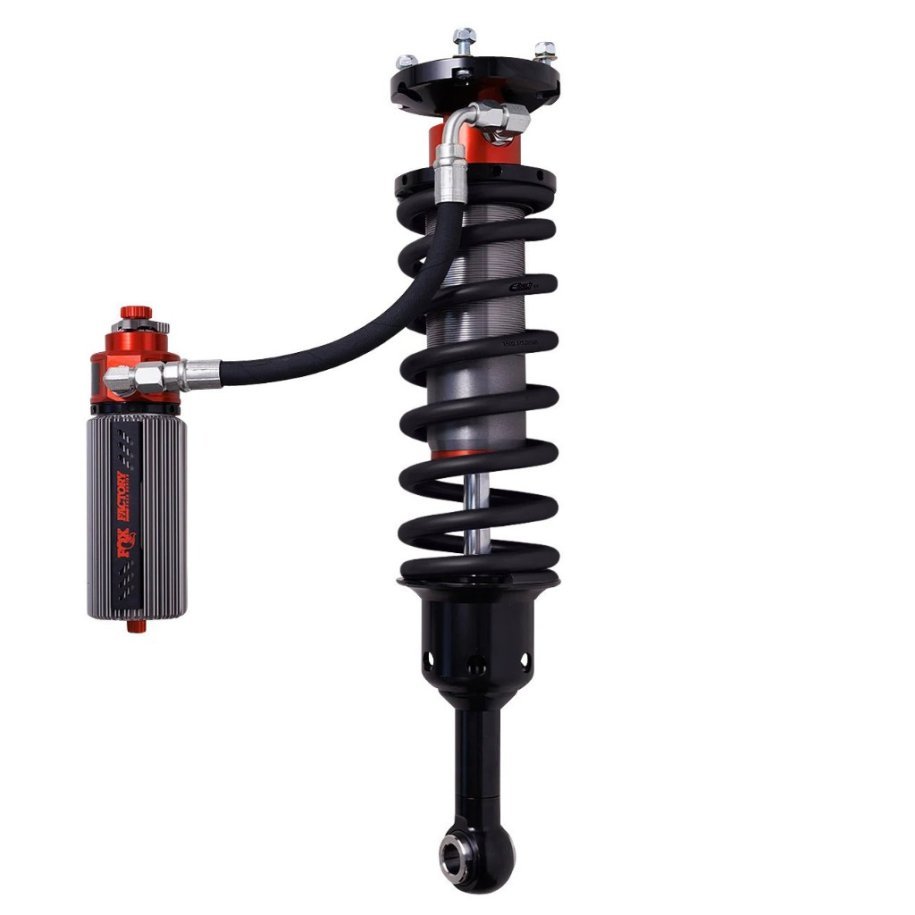

Front nitro Coilover FOX Factory Race 3.2 Reservoir adjustable Internal Bypass DSC EVO Lift 1-3"

• DSC EVO using Variable Valve Control (VVC) technology
• Body: 3.2" Hard anodized aluminum

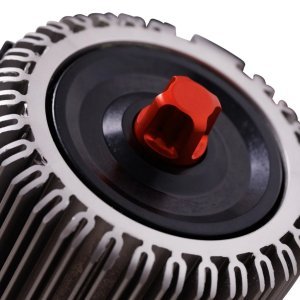

• Reservoir: hard anodized extruded aluminum finned remote reservoir
• Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
• Spring: 3.75" racing spring
• Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
• Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
• Valving: Specific for Toyota Land Cruiser Prado 250 and 4runner to maximize performance and comfort
• Oil: JM92 Advanced Suspension Fluid
• Bearing: Spherical, PFTE-lined, heat-treated steel

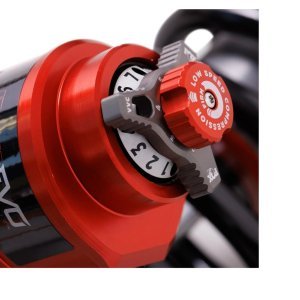

• Adjustments: Dual Speed Compression DSC EVO adjuster, Ride-height/spring preload ring

Dimensions:

• Extended: 24.37"
• Compressed: 17.65"
• Travel: 6.72"

Mounts:

• Top mount: oem
• Bottom mount: eyelet

Notes:

• When adjusting shock height for a lift over 2”, the installation of extended front upper control arms is recommended
