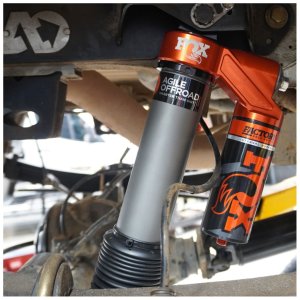

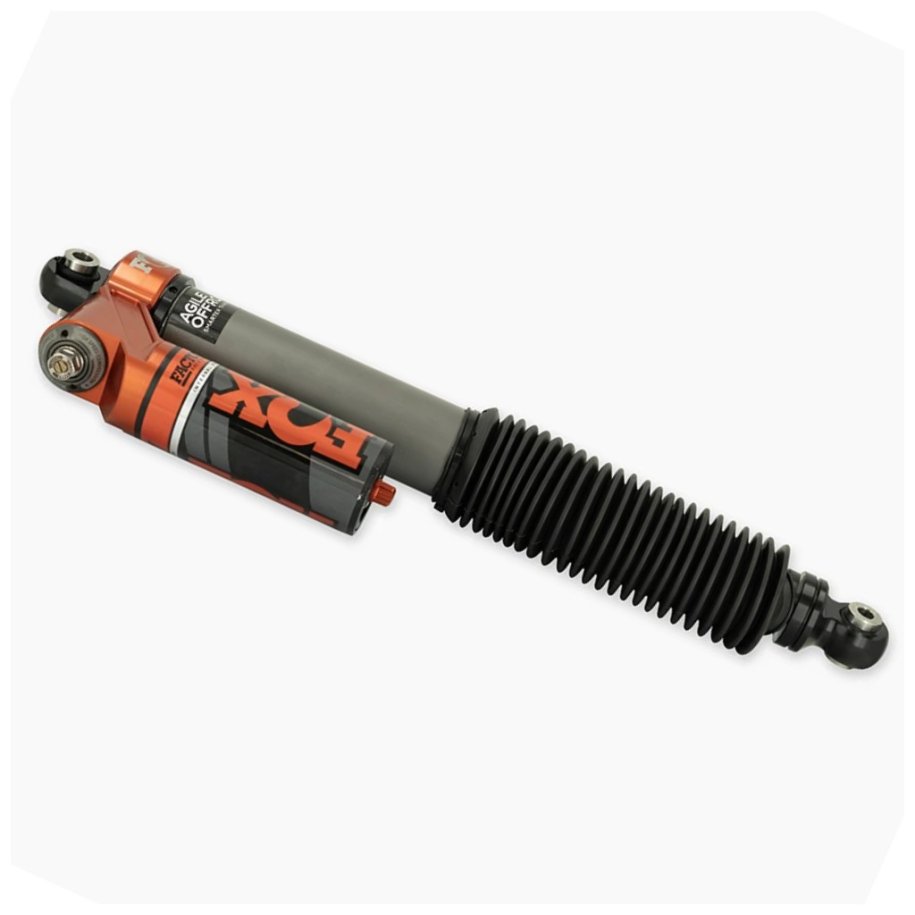

Rear Nitro Shock Agile Offroad & FOX Factory Race 2.5 Reservoir Adjustable Internal Bypass DSC EVO 0-1,5"

• DSC EVO - Dual Speed Compression with Variable Valve Control
• External reservoir with Internal Floating Piston (IFP)
• 2.5” diameter steel body
• 7/8” chrome-plated steel shaft
• 8.02” shock travel
• Piggyback reservoir
• Rotating body cap
• 6061-T6 hard anodized billet aluminum 9-port high-flow race piston
• Anodized billet aluminum components
• High-temp Viton® redundant seal pack system with main seal, wiper seal, and scraper seal
• JM92 Advanced Suspension Fluid for race-proven performance from 0–400° F
• PTFE-lined, heat-treated steel spherical bearings
• Dual-coated body with FOX Grey Cerakote® over zinc-plated basecoat
• Custom designed, developed, and tuned specifically for Sprinter 4x4 / AWD vans

Dimensions:

• Extended: 23.21"
• Collapsed: 15.19"
• Travel: 8.02"

Mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Notes:

• Requires Double shear brackets AOS24-1003
• Fits ,strong>only to 4x4 and AWD models
