Lift Kit Rough Country Lift 5" Diesel

• Increased ground clearance
• Track bar bracket keeps the front axle properly centered
• Radius Arms offer a more factoryΓÇÉlike angle and feature a durable, durable rubber Bushings for maximum vibration absorption
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and offΓÇÉroad use

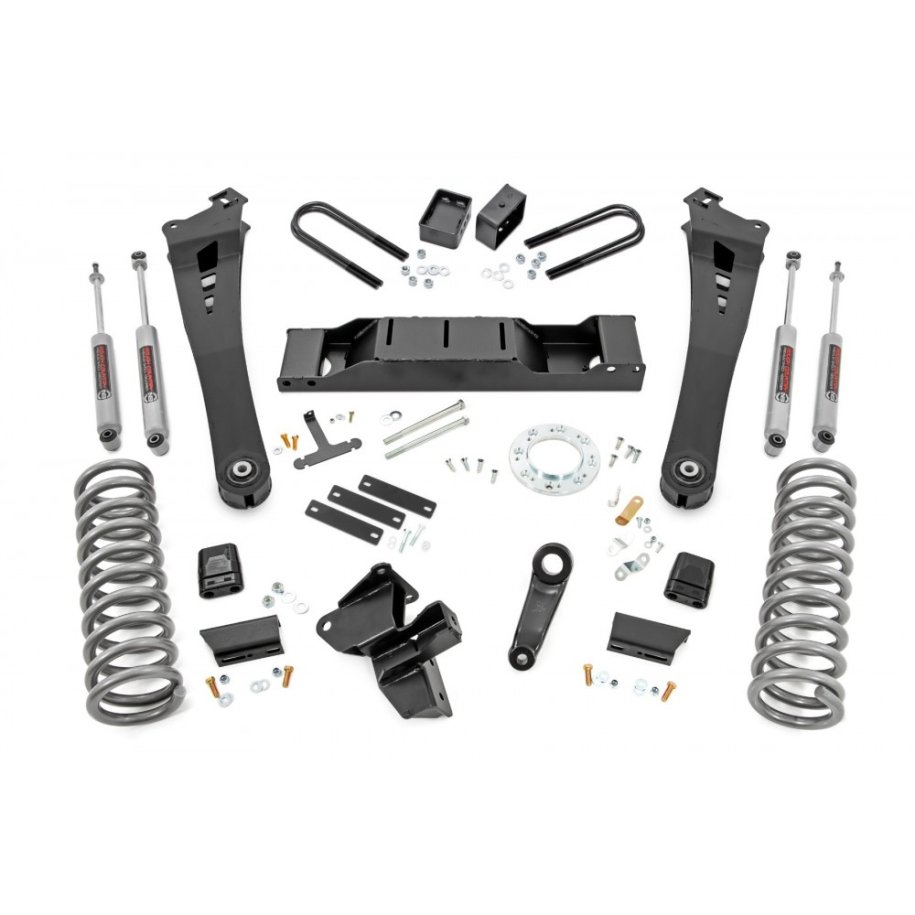

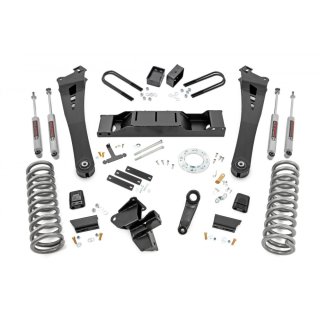

In the box:

• Front:
  • Lifted Coil springs
  • (2) Shock Premium N3
  • Radius arms
  • Track Bar bracket
  • Transmission crossmember
  • Clocking ring
  • Sway Bar Bracket
  • Pitman arm
  • Carrier bearing shims
  • Hardware
• Rear:
  • Rear Lift Blocks
  • (2) Shock Premium N3
  • U-Bolt
  • Track bar bracket
  • Sway Bar Link
  • Hardware

Notes:

• Fits only 4WD models
• Requires removal of Transfer case for clocking ring install for correct front driveline geometry
• Does not fit Power Wagon models
• Does not fit air ride models
• Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
• Fits only Diesel models
• Requires minor cutting
• On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing
• Does not fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission
